Overview
Stationary and industrial SCiB™ modules suitable for building battery systems on various scales
The Type3-20, Type3-23, and Type1-23 modules consist of 12-series of two parallel SCiB™ cells. These SCiB™ modules are suitable for applications that support social infrastructure, including public, industrial, electric power, and railroad systems as well as home applications. They can be used for a wide range of stationary and motive applications*
For industrial devices and stationary systems
For motive applications*
*Motive applications as specified in IEC 62619:2022.
Components
Toshiba offers various components necessary to build battery systems such as BMUs, connectors, and sensors.
Features
The Type3-20, Type3-23, and Type1-23 modules provide enhanced environmental robustness, making them suitable for various applications.
These modules operate at temperatures as low as -30°C and at altitudes of up to 2000 m while providing high withstand voltage and vibration tolerance.
Safety
Low risk of fire or explosion
Long life
Cycle life of 20,000 times or more
Performance at low temperature
Usable even at -30℃
High input/output
Large current for both input and output
Rapid charging
Rapidly charges to about 80% of the capacity in 6minutes
Wide effective SOC* range
Available SOC range of 0 to 100%
* SOC: State of Charge
Characteristics

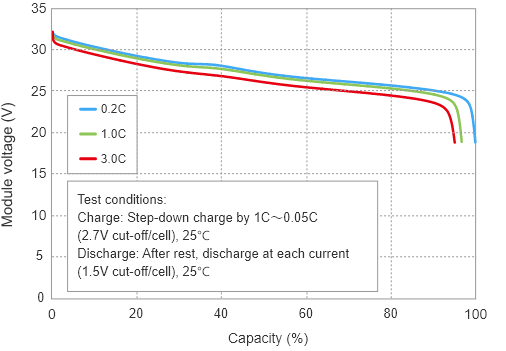

Discharge rate characteristics

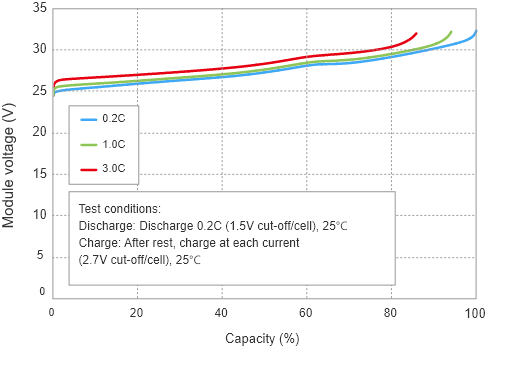

Charge rate characteristics
* Specifications shown herein are not guaranteed values and are subject to change without notice. Battery performance depends on conditions of use.
* Product specifications are subject to change without notice.
Product specifications
| Recommended application | For industrial devices and stationary systems | For motive application* | ||
|---|---|---|---|---|
| Product name | 2P12S module Type3-20 |
2P12S module Type3-20HP |
2P12S module Type3-23 |
2P12S module Type1-23 |
| Model | FM01202CCA04A | FM01202CCE01A | FM01202CCB01A | FM01202CCB02A |
| Cell configuration | 2 in Parallel × 12 in Series (24 pcs of 20Ah cells) |
2 in Parallel × 12 in Series (24 pcs of 20Ah-HP cells) |
2 in Parallel × 12 in Series (24 pcs of 23Ah cells) |
|
| Rated capacitity | 40Ah (25°C, 8A discharge) | 39Ah (25℃, 8A discharge) | 45Ah (25°C, 9A discharge) | |
| Nominal energy | 1104Wh | 1076Wh | 1242Wh | |
| Nominal voltage | DC27.6V | |||
| Voltage range | DC18.0 to 32.4V | |||
| Ambient temperature | -30 to 45℃ | |||
| Ambient humidity | 85%RH or less (no condensation) | |||
| Dimensions | W190×D361×H125mm (Protrusions excluded) | |||
| Weight | Approx. 14kg | Approx. 15kg | ||
| Maximum charge/ discharge current |
160A (continuous), 350A (charge/discharge, 10s),(Not over 55°C at cell temperature, at 25°C ambient) | 160A (continuous), 500A charge/discharge, 10s), (Not over 55℃ at cell temperature, at 25℃ ambient) | 160A (continuous), 350A (charge/discharge, 10s),(Not over 55°C at cell temperature, at 25°C ambient) | |
| Major built-in functions |
Cell voltage measurement, module temperature measurement, cell balancing*, communication (CAN) * Function to even differences in voltage among cells connected in series |
|||
| Recommended application | For industrial devices and stationary systems | For motive application* | ||
|---|---|---|---|---|
| Product name | 2P12S module Type3-20 |
2P12S module Type3-20HP |
2P12S module Type3-23 |
2P12S module Type1-23 |
| Model | FM01202CCA04A | FM01202CCE01A | FM01202CCB01A | FM01202CCB02A |
| Cell configuration | 2 in Parallel × 12 in Series (24 pcs of 20Ah cells) |
2 in Parallel × 12 in Series (24 pcs of 20Ah-HP cells) |
2 in Parallel × 12 in Series (24 pcs of 23Ah cells) |
|
| Rated capacitity | 40Ah (25°C, 8A discharge) | 39Ah (25℃, 8A discharge) | 45Ah (25°C, 9A discharge) | |
| Nominal energy | 1104Wh | 1076Wh | 1242Wh | |
| Nominal voltage | DC27.6V | |||
| Voltage range | DC18.0 to 32.4V | |||
| Ambient temperature | -30 to 45℃ | |||
| Ambient humidity | 85%RH or less (no condensation) | |||
| Dimensions | W190×D361×H125mm (Protrusions excluded) | |||
| Weight | Approx. 14kg | Approx. 15kg | ||
| Maximum charge/ discharge current |
160A (continuous), 350A (charge/discharge, 10s),(Not over 55°C at cell temperature, at 25°C ambient) | 160A (continuous), 500A charge/discharge, 10s), (Not over 55℃ at cell temperature, at 25℃ ambient) | 160A (continuous), 350A (charge/discharge, 10s),(Not over 55°C at cell temperature, at 25°C ambient) | |
| Major built-in functions |
Cell voltage measurement, module temperature measurement, cell balancing*, communication (CAN) * Function to even differences in voltage among cells connected in series |
|||
*Motive applications as specified in IEC 62619:2022.
Note: Specifications shown herein are not guaranteed values and are subject to change without notice. Battery performance depends on conditions of use.
